LUMO POWERALL 1& 1.5 Quick Start Guide

Start up

*BMS Switch*: Controls the power supply to the battery BMS. This switch needs to be turned on before use.

*Power Switch*: The main power switch of the machine.

1. Turn on the ‘BMS Switch’. This switch must be on to start the machine or charge the battery.
2. Turn on the ‘Power Switch’. The machine will power up, and after a beep, it will be ready for operation.
3. Turn on the ‘AC Output Breaker’ on the right side to supply power to the outlets on the panel.
4. Turn on the ‘USB Switch’ on the left side to power the USB and Type-C ports on the panel.

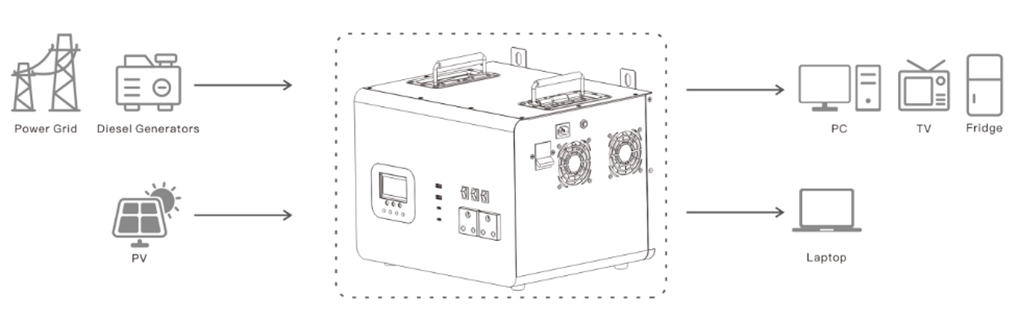

Solar Integrated Connection

Integrated PV with an MPPT control scheme and supports hybrid charging by default, allowing both grid and PV to charge the battery simultaneously, fully charging the battery within one hour. When PV supply is sufficient, it can charge the battery and power the load simultaneously.
