Pylontech UP5000D vs UP5000
The Pylontech UP5000D is a new-generation 48V LiFePO4 battery developed
for new installations and the expansion of compatible existing Pylontech
low-voltage battery systems.
It retains the familiar 4.8kWh module capacity while introducing an
updated cell platform, more than 8,000 rated cycles and a 10-year product
warranty. For many existing Pylontech owners, this provides a practical
way to expand battery capacity without replacing a working battery bank.
UP5000D and UP5000 Comparison
Both models provide the same familiar 4.8kWh module capacity, but the
UP5000D offers an updated technology platform and improved long-term value.
| Feature | Pylontech UP5000 | Pylontech UP5000D | Why It Matters |
|---|---|---|---|
| Nominal energy | 4.8kWh | 4.8kWh | Familiar module capacity for convenient system expansion |
| Battery chemistry | LiFePO4 | New-generation LiFePO4 cell platform | Long service life and strong thermal stability |
| Rated cycle life* | More than 6,000 cycles | More than 8,000 cycles | Approximately 33% more rated cycles |
| Product warranty* | Market and warranty terms may vary | 10 years | Longer product-warranty coverage |
| Legacy-system expansion | Model and firmware dependent | Designed for approved mixed-model expansion | May allow capacity to be added without replacing a working battery bank |
| Current value position | Previous-generation product | Newer technology with strong current value | Better long-term value for many new installations and upgrades |
*Cycle life, warranty eligibility and system compatibility are subject to
the applicable Pylontech documentation, operating conditions, installation
requirements, firmware and local warranty terms.
but with a new-generation cell platform, a higher rated cycle life and
longer warranty coverage. Its strongest advantage is its suitability for
approved expansion of compatible older Pylontech systems.
What Is Different About the UP5000D?
New-Generation Cell Platform
The updated LiFePO4 platform provides more than 8,000 rated cycles,
compared with more than 6,000 cycles for the previous UP5000 generation.

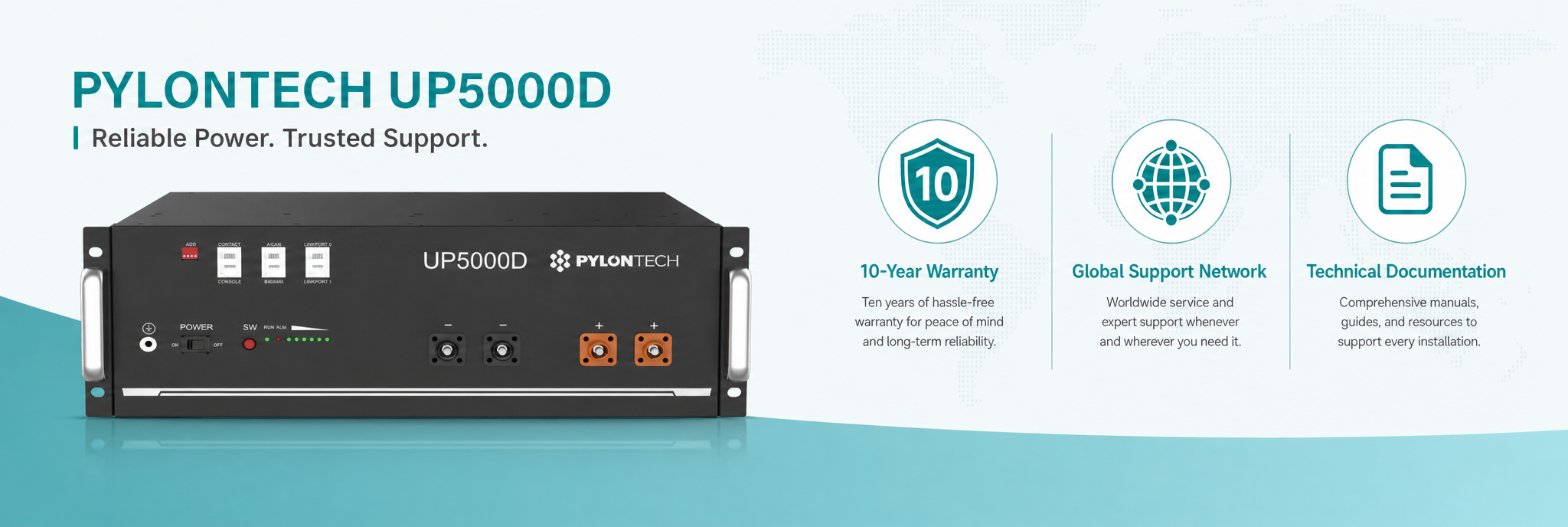

10-Year Product Warranty
The UP5000D is supplied with a 10-year product warranty, subject to
Pylontech warranty terms, approved installation and operating conditions.

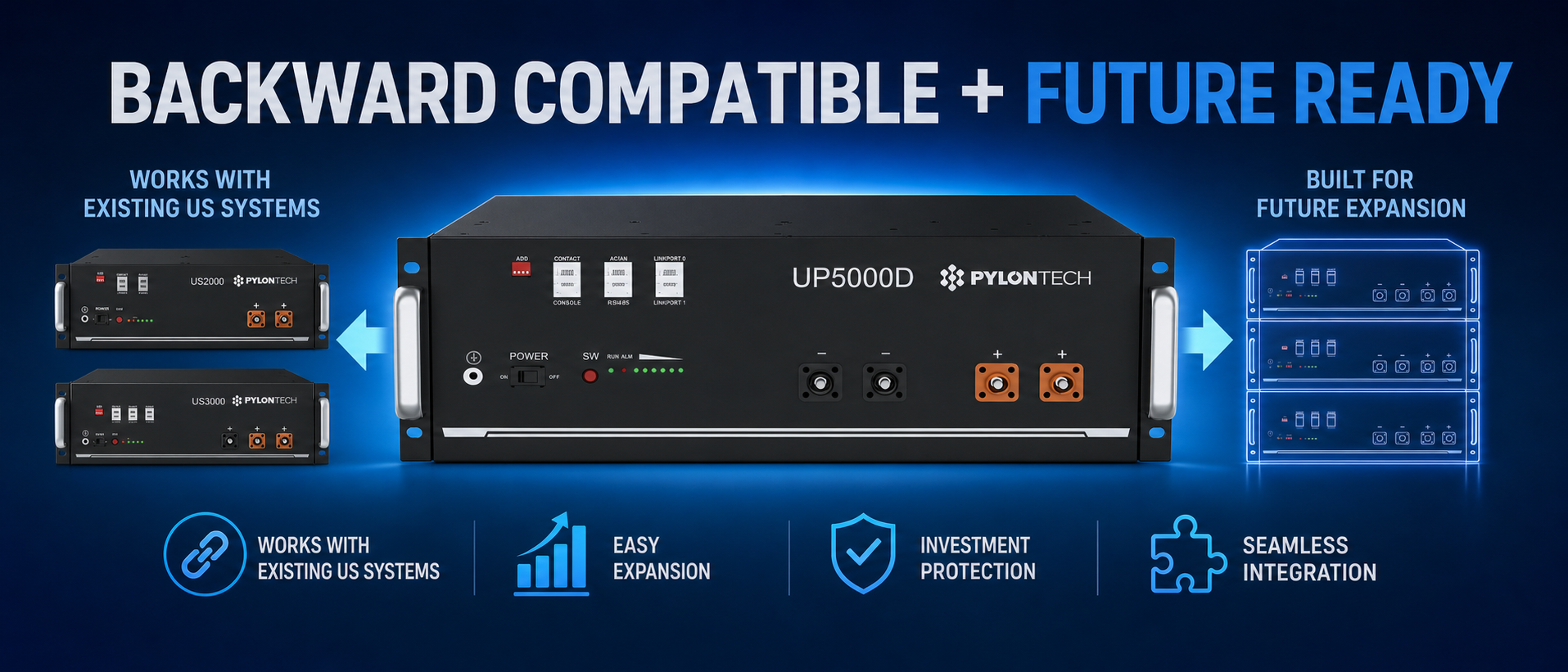

Designed for System Expansion
It is designed to support approved expansion of compatible legacy
Pylontech battery systems after the required installer assessment,
firmware checks and battery alignment.

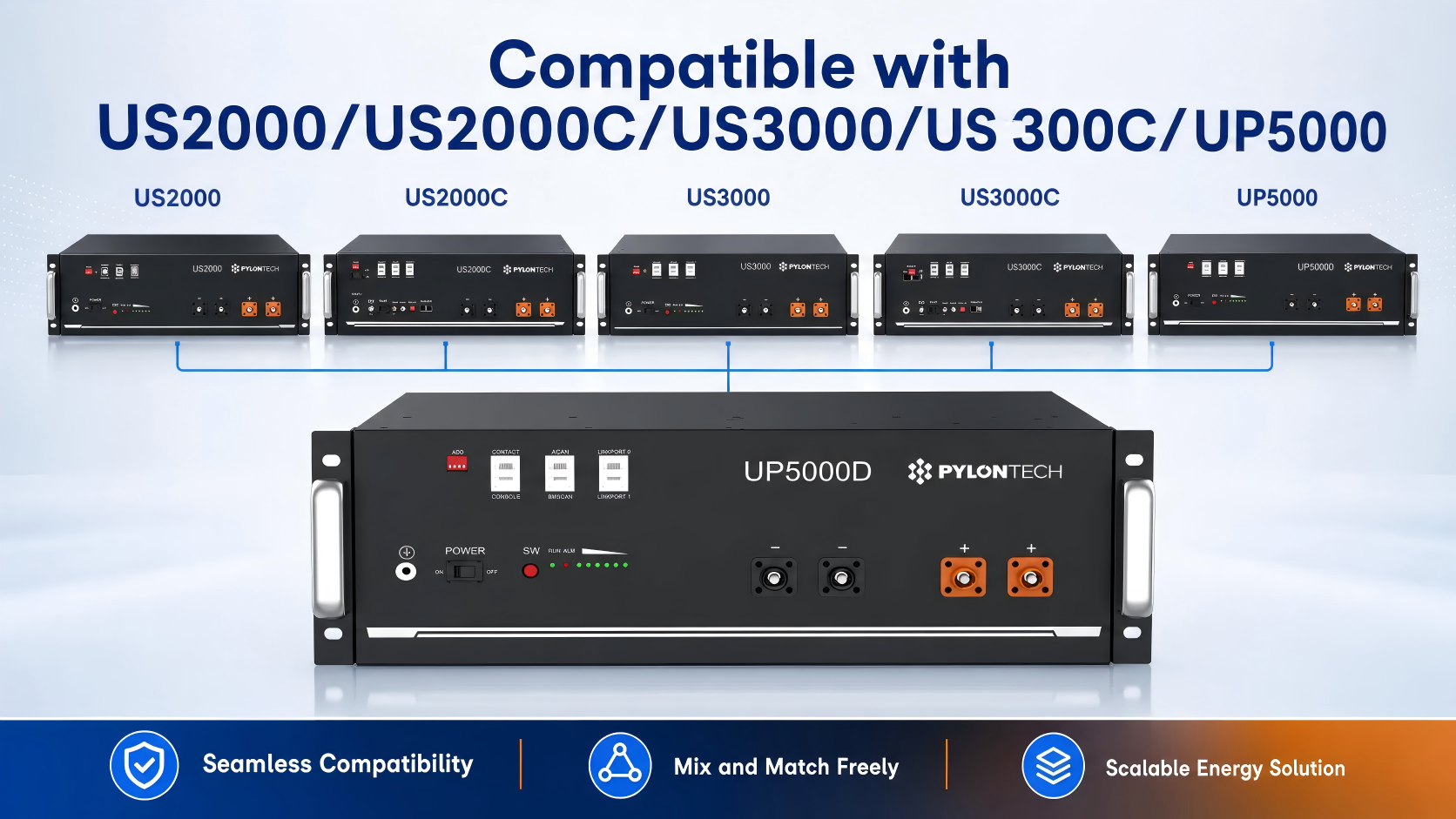

Compatible Legacy-System Expansion
Subject to installation assessment, firmware compatibility and correct
commissioning, the UP5000D may be used to expand systems containing
compatible Pylontech low-voltage battery models such as:
UP5000
US2000
US2000C
US3000
US3000C
models, firmware versions, inverter compatibility, system condition and
connection order must be confirmed before installation.
Recommended Expansion Process
Can the UP5000D Be Added to Batteries Older Than Two Years?
Battery age alone does not automatically determine compatibility. The more
important factors are battery condition, firmware, voltage balance, State
of Charge, State of Health and the configuration of the existing system.
Before adding a UP5000D, a qualified installer should check:
plugs are physically compatible. Incorrect mixed-model installation may
cause communication faults, imbalance, reduced performance or equipment damage.
Better Technology and Better Long-Term Value
The UP5000D can deliver strong long-term value for both new installations
and approved upgrades. It combines a longer rated cycle life, extended
warranty coverage and compatibility-focused design in the familiar
Pylontech low-voltage battery format.
Should You Choose the UP5000 or UP5000D?
- You are building a new Pylontech low-voltage system.
- You want more than 8,000 rated cycles.
- You prefer a 10-year product warranty.
- You need to expand an approved older Pylontech battery bank.
- You want the latest-generation platform and stronger long-term value.
- Your current system already provides sufficient capacity.
- The existing battery bank remains healthy and balanced.
- You do not currently need additional backup or usable energy.
- There is no immediate economic reason to change the system.
Frequently Asked Questions
Is the UP5000D compatible with the older UP5000?
It is designed to support approved mixed-model expansion, but the exact
system configuration, firmware and installation requirements must be
confirmed before connection.
Can the UP5000D be used with US2000 or US3000 batteries?
Approved configurations may support expansion of compatible US2000,
US2000C, US3000 and US3000C systems. An installer must verify the exact
model, firmware, inverter and connection sequence.
Can a new UP5000D be added to batteries older than two years?
Potentially, yes. Battery age alone is not the deciding factor. The
installer must evaluate battery health, voltage, State of Charge,
firmware and overall system condition.
Does the UP5000D have the same capacity as the UP5000?
Yes. Both products provide 4.8kWh of nominal energy per battery module.
How many UP5000D batteries can be connected?
Up to 16 modules may be configured in an approved system, subject to the
inverter, firmware, cabling and installation requirements.
Can the UP5000D be installed outdoors?
The battery has an IP20 rating and must be installed indoors or inside
a suitable protective battery enclosure.
Is professional installation required?
Yes. Installation and commissioning should be completed by a qualified
solar installer familiar with Pylontech battery systems and the
connected inverter.
Upgrade Your Pylontech Battery System
The UP5000D is a strong choice for new residential energy storage systems
and approved expansion of compatible existing Pylontech battery banks.
Contact a qualified installer to confirm your system configuration before ordering.
Datasheet Download
compatibility information may change. Always confirm the latest Pylontech
documentation and obtain professional installation advice before purchasing
or expanding a battery system.
