JA Solar 550W Monocrystalline Solar Panel

JA Solar 550W Monocrystalline Solar Panel

The JA Solar 550W Monocrystalline Solar Panel adds 0.550kWp of rated DC capacity per module to a proposed photovoltaic array. Ten modules total 5.50kWp, twenty total 11.00kWp and thirty total 16.50kWp. This page focuses on preparing a clearly specified equipment order for a home, farm building or commercial roof. The full JA Solar model has not yet been established for this listing, so the 550W title is not treated as proof of a particular JAM family, cell arrangement, dimension or system-voltage rating.

Building a clear module schedule

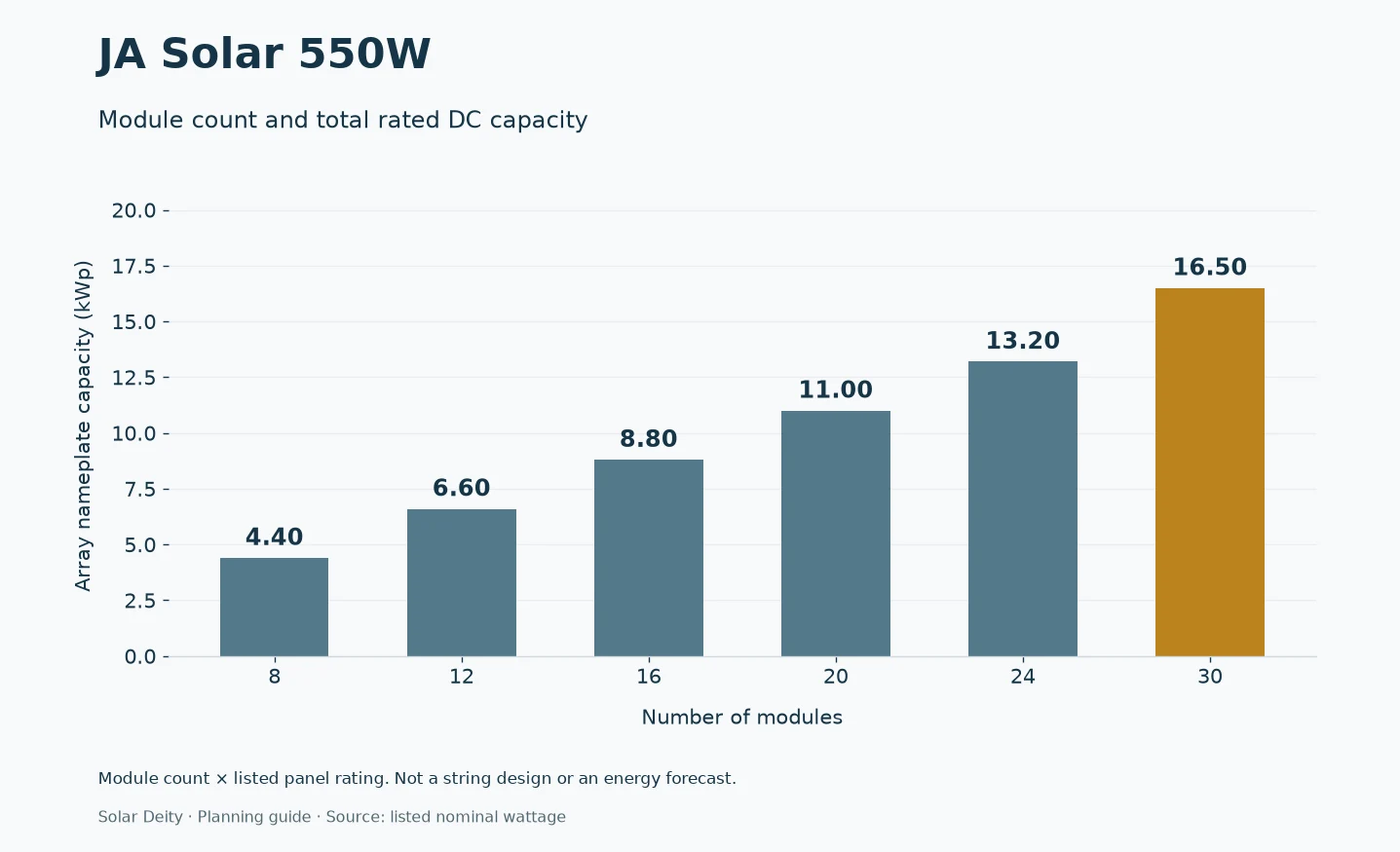

A quantity schedule makes a larger project easier to compare and procure. At 550W each, twelve panels provide 6.60kWp, sixteen provide 8.80kWp and twenty-four provide 13.20kWp. Record both the count and the total rating on the quotation so a change in module wattage does not pass unnoticed. These values are DC nameplate totals. They do not determine the permitted string layout, the inverter AC output or the roof area required for the actual module offered.

An agricultural building application

A packing shed or other agricultural building can provide a possible roof location for a PV array, subject to a proper survey. Its electrical demand may follow working hours, seasonal activity or equipment cycles. The application image illustrates that context rather than a completed JA Solar installation. Pumps, refrigeration and machinery have different operating characteristics, so their suitability cannot be established by adding panel wattages. Provide the actual load schedule and equipment details when requesting a complete system proposal.

Why a 545W photograph cannot identify a 550W module

The earlier main-image asset carried a 545W filename. That is not sufficient evidence of the exact 550W product, even where the panels look similar. The page therefore uses a clearly identified planning graphic instead of presenting that asset as a verified 550W photograph. Ask for a current photo and the complete label of the offered module if physical identity is important to your order. Model confirmation must come from the supplied unit and its matching documentation.

Comparing the adjacent JA Solar power classes

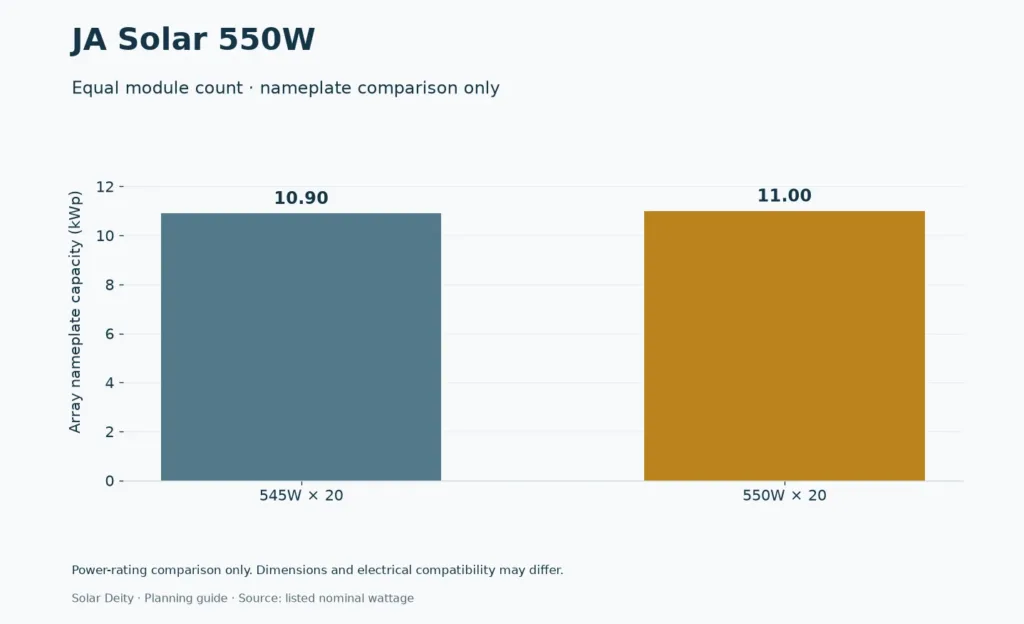

For twenty modules, the 550W rating totals 11.00kWp while 545W totals 10.90kWp. The difference is 0.10kWp, approximately 0.92% relative to the 545W total. This comparison helps interpret quotations that use adjacent wattage classes. It does not establish equivalent dimensions, cell construction or electrical compatibility. A complete model and datasheet are still needed for each option, and the nameplate difference should not be presented as a guaranteed annual energy improvement.

Preparing the roof and delivery scope

Before ordering multiple modules, confirm usable roof dimensions and the access needed for delivery and installation. The panel dimensions and mass must come from the exact model documentation; neither is inferred from the 550W rating here. Arrange the delivery location and handling responsibility in advance, particularly for farms or sites with restricted access. Keep the module quantity, any packaging arrangements and the installation scope clearly separated in the quotation so there is no assumption that transport or mounting equipment is included.

Inspecting delivered equipment

The inspection illustration shows three areas to record: glass, frame and the identification label. On delivery, compare the model and quantity with the agreed order and document visible damage through the supplier process. Do not treat a generic black-panel appearance as proof that the correct variant arrived. Retain the label information and paperwork for the installation record. The illustration is conceptual and does not represent a manufacturer-approved inspection procedure or establish that a visibly undamaged module has passed electrical testing.

Inverter design information still required

A designer needs the correct module open-circuit and operating voltages, current ratings and relevant temperature data before choosing a string arrangement. The inverter model then supplies the input and tracking limits against which the proposed array is assessed. A nominal system description such as 10kW does not provide that information. The specification table makes the missing module details explicit; borrowing values from a different JA Solar 550W series could produce an incorrect connection design despite the matching power number.

An energy illustration for twenty modules

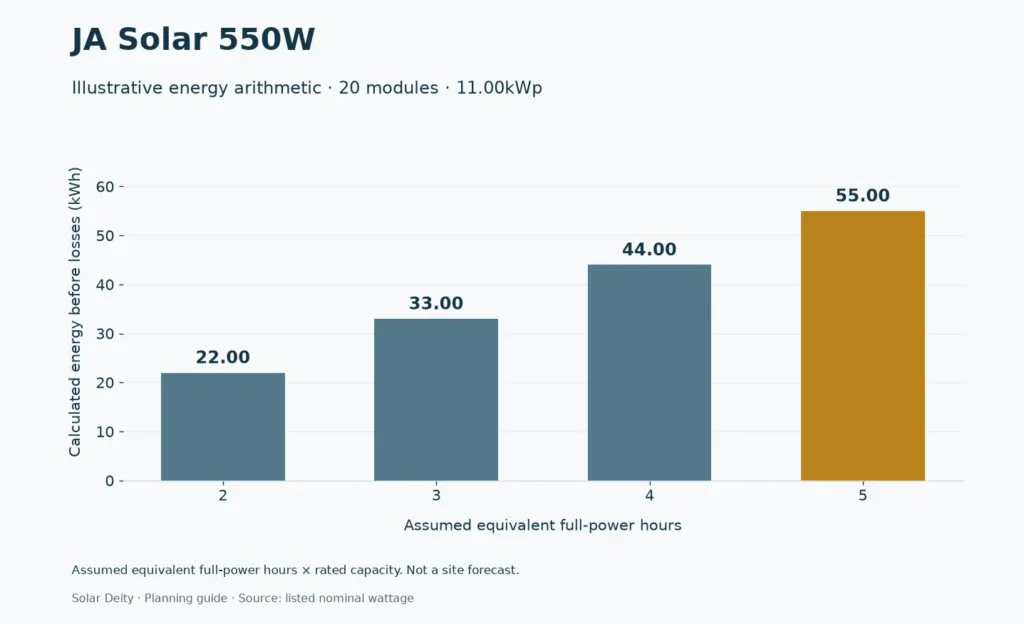

Twenty panels rated at 550W give an 11.00kWp array. Under a purely illustrative assumption of four equivalent full-power hours, multiplication gives 44.00kWh before losses. This is not a forecast for a farm, a city or a particular roof. The separate energy chart shows the assumed relationship so it is clear how changing the input hours changes the arithmetic result. A site-specific production estimate must also account for the actual environment and the complete system.

Requesting a project quotation

Send Solar Deity the proposed module count, delivery area and full inverter model, together with the roof layout if available. State whether you need modules alone or a complete design and installation quotation. For a procurement schedule, request the full JA Solar model, matching electrical datasheet, physical dimensions and applicable warranty terms in writing. If the model offered changes during procurement, ask for the revised documentation so the installer can assess the change before equipment is substituted.

What this page confirms and what remains open

This listing confirms the JA Solar brand description and 550W nominal power class used for the capacity examples. It does not currently verify the complete model suffix, efficiency, weight, module dimensions or voltage version. The generated application and inspection images explain project considerations, while the charts show transparent arithmetic. They are not product certification or stock photography. Final equipment selection should be based on the model-matched quotation and datasheet, allowing this improved page to support the decision without disguising missing technical evidence.

Product documentation

• JA Solar manufacturer website
• Previously linked JA Solar document

Technical specifications
