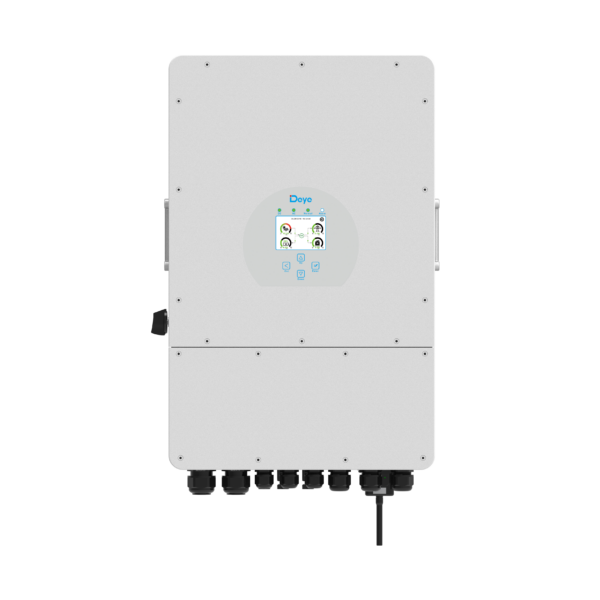

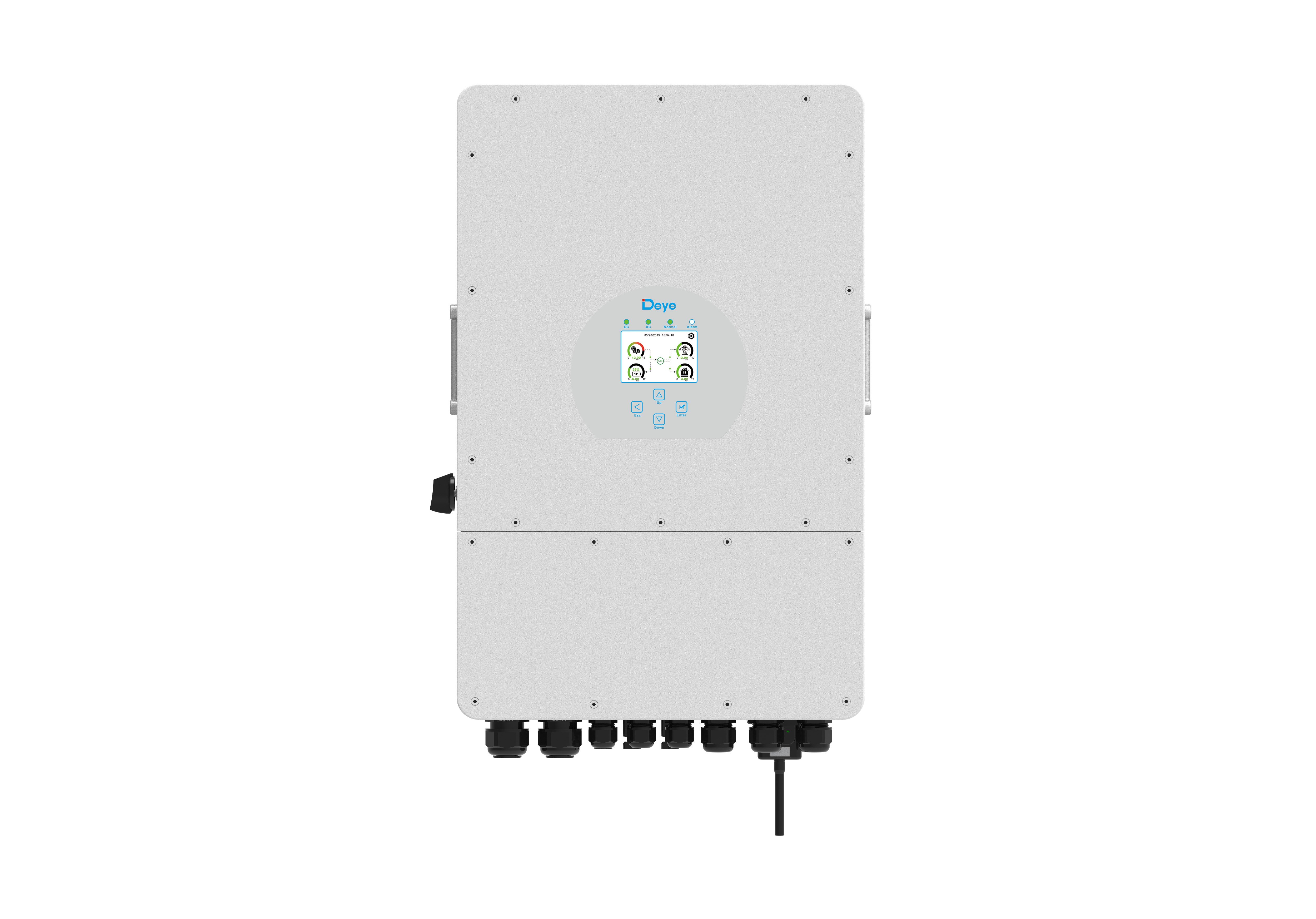

Deye 12kW Three-Phase Low-Voltage Hybrid Inverter

Deye 12kW hybrid power for a three-phase property

The Deye 12kW three-phase hybrid inverter is an option for a property with a suitable three-phase supply and a compatible low-voltage battery system. Solar Deity can help review the intended backup circuits, the loads on each phase and the planned solar array before equipment is selected.

Assess each phase separately

A three-phase rating is not a promise that the full inverter rating is available to any single circuit. Ask your installer to map loads by phase and check running demand and motor-starting demand against the exact model limits. A workshop and a home may need very different backup arrangements despite similar total consumption.

Identify equipment that must run together and equipment that can be deferred. This makes the backup scope clearer and helps avoid choosing an inverter solely from a property-wide power estimate.

Match the low-voltage battery

The referenced SG04LP3 family uses a 48V-class battery connection. Its solar input operates at a different voltage, so the PV specification should not be used to select a battery. Confirm the approved battery model and communication requirements.

Battery energy influences backup duration, while battery current capability and inverter limits affect available power. A larger energy rating alone does not establish that a battery bank can supply every connected appliance simultaneously.

Plan the solar strings and future expansion

Share the panel model, proposed quantity and roof orientations when requesting a quotation. String voltage and current must match the supplied inverter version. Different revisions can have different input limits even when their headline power is the same.

If future expansion is planned, ask for an approved configuration. Do not treat a general parallel-unit count as a substitute for checking the exact equipment and installation.

Common question: Will it run all three phases during backup?

That depends on the actual phase loads and the approved battery arrangement. Ask for the intended backup circuits and operating limits to be documented.

Contact Solar Deity for a model-specific quotation. Confirm the equipment, accessories, installation scope and applicable warranty terms before placing an order.
