Pylontech UP5000D New-Generation 4.8kWh 48V LiFePO4 Solar Battery, 95% DoD, 8000+ Cycles
Original price was: R21,500.00.R18,500.00Current price is: R18,500.00.
• DESIGNED FOR EXISTING SYSTEM EXPANSION – The new-generation Pylontech UP5000D is compatible with legacy Pylontech 48V battery models, including US2000, US2000C, US3000, US3000C and UP5000. Expand your existing battery bank without replacing the batteries already installed.
• NEW TECHNOLOGY, BETTER VALUE – An updated Pylontech battery platform offering improved usable capacity, long cycle life and a cost-effective upgrade path for existing Pylontech users.
• 4.56KWH USABLE ENERGY – Provides 4.8kWh nominal capacity and 4.56kWh usable capacity with 95% Depth of Discharge, allowing more stored energy to be used during backup or off-grid operation.
• POWERFUL AND SCALABLE – Supports 100A normal charge and discharge current, with up to 16 batteries configurable in one battery group for larger residential, commercial, backup and microgrid applications.
• BUILT FOR LONG-TERM OPERATION – Rated for more than 8,000 cycles at 25°C under specified operating conditions, with a 15-year design life and integrated RS485/CAN communication.
• CERTIFIED FOR ENERGY STORAGE APPLICATIONS – Certified to IEC62619, IEC63056, UL1973, UL9540A, IEC61000-6-2, IEC61000-6-3 and UN38.3 standards.

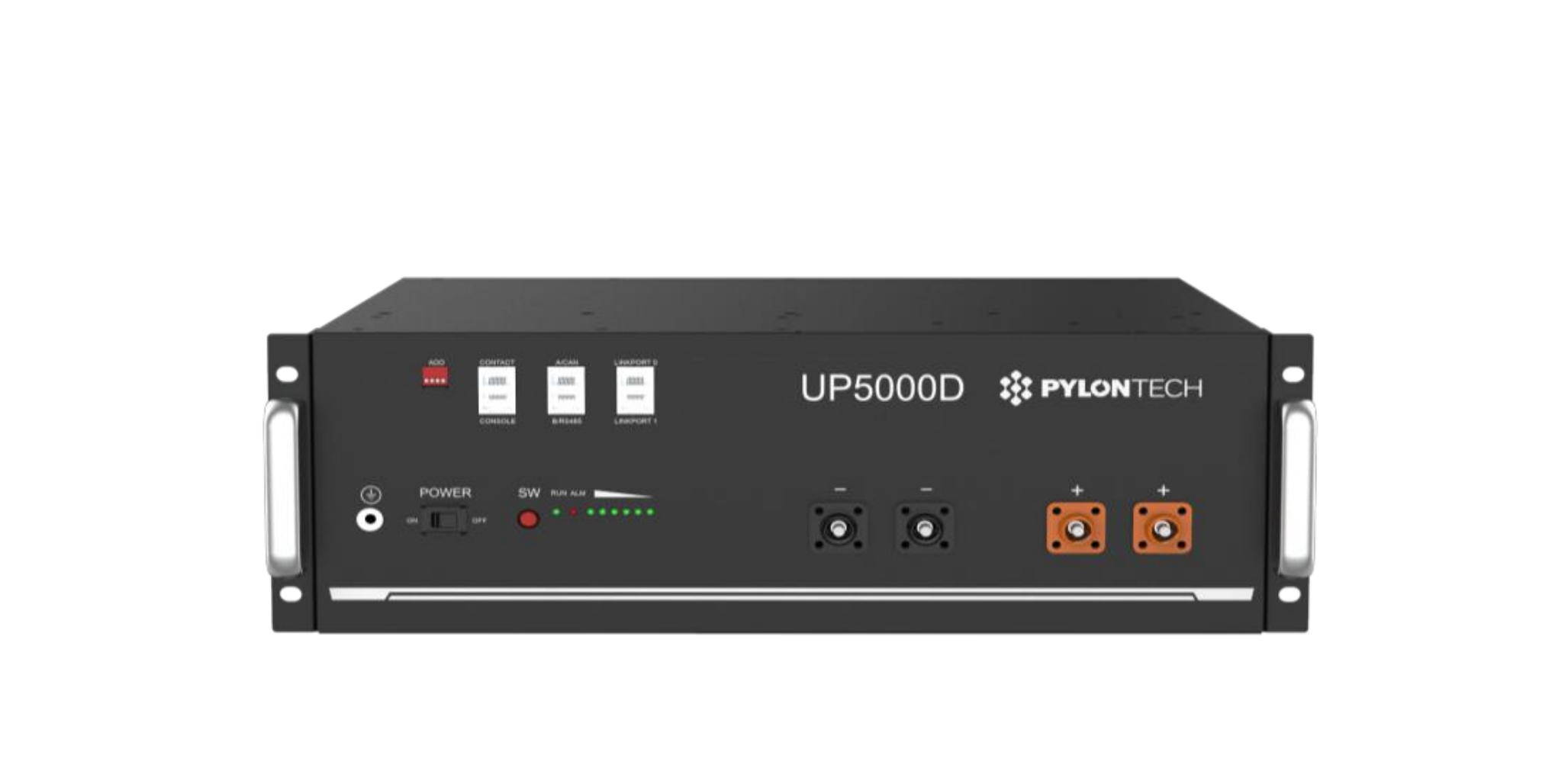

Pylontech UP5000D 4.8kWh LiFePO4 Battery
A new-generation 48 V battery designed for easier system expansion and long-term flexibility
The Pylontech UP5000D is a 48 V lithium iron phosphate (LiFePO4) battery designed for residential and commercial solar energy storage, load-shedding backup, off-grid systems and microgrid applications. Each module provides 4.8 kWh of nominal energy and 4.56 kWh of usable energy, with a 95% Depth of Discharge that allows more stored energy to be used for everyday loads and backup power.
A major advantage of the UP5000D is its ability to support the expansion of compatible previous-generation Pylontech battery systems. It can be used with Pylontech US2000, US2000C, US3000, US3000C and UP5000 batteries, subject to Pylontech installation requirements, inverter compatibility, firmware versions and the correct mixed-model connection sequence.
This broad legacy-system compatibility gives existing Pylontech users a practical way to increase storage capacity without automatically replacing the batteries they already own. Combined with more than 8000 rated cycles, a 15-year design life and support for up to 16 batteries in one group, the UP5000D provides a flexible upgrade path for both new and existing energy-storage systems.
Important: Mixed-model compatibility must be confirmed for the complete system before installation. The inverter, battery firmware, communication settings, battery order and commissioning procedure must all support the proposed configuration.
Product highlights
- Compatible with Pylontech US2000, US2000C, US3000, US3000C and UP5000 batteries
- Designed to expand compatible existing Pylontech battery systems
- 4.8 kWh nominal energy per battery module
- 4.56 kWh usable energy
- 48 V low-voltage architecture
- 95% Depth of Discharge
- 100 A normal charge/discharge current
- 105-119 A maximum charge/discharge current for 15 minutes
- 120-200 A peak charge/discharge current for 15 seconds
- Up to 16 batteries in one battery group
- Up to 76.8 kWh nominal energy with 16 UP5000D modules
- More than 8000 rated cycles at 25°C
- 15-year design life at 25°C
- RS485 and CAN communication interfaces
- Compact rack-mountable design
- Integrated Battery Management System
- IP20 enclosure for protected indoor installation
- Suitable for backup power, off-grid systems and microgrid projects
- Certified to IEC 62619, IEC 63056, UL 1973, UL 9540A and UN38.3 standards
Why UP5000D
A practical upgrade path for existing Pylontech systems
Many new battery models require customers to replace their existing batteries or build a separate battery group. The UP5000D is designed to make expansion easier by supporting mixed use with selected previous-generation Pylontech batteries.
Compatible legacy models include:
- Pylontech US2000
- Pylontech US2000C
- Pylontech US3000
- Pylontech US3000C
- Pylontech UP5000
This compatibility can allow an existing system to gain additional storage capacity without discarding functional batteries that are already installed.
Mixed-model operation is still a technical system configuration. Compatibility depends on battery firmware, inverter support, communication protocol, battery condition and the required master-battery and connection sequence.
More usable energy from every battery
Each UP5000D module provides 4.8 kWh of nominal energy and 4.56 kWh of usable energy.
Its 95% Depth of Discharge allows a larger proportion of stored energy to be used for household consumption, evening loads and backup power before recharging is required.
This can help increase solar self-consumption, reduce unnecessary grid imports and provide additional energy during load shedding or unexpected power interruptions.
Actual usable energy depends on inverter settings, configured reserve capacity, operating temperature, battery condition and the overall system design.
Strong charge and discharge performance
The UP5000D supports a normal charge/discharge current of 100 A.
Its specified higher-current performance includes:
- 105-119 A for up to 15 minutes
- 120-200 A for up to 15 seconds
This performance profile allows the battery to support sustained residential and light-commercial loads while also responding to short-duration power demands within the manufacturer’s approved operating limits.
Actual system power is determined by the inverter, battery quantity, cable sizing, protective equipment, battery temperature and Battery Management System operating limits.
Scalable low-voltage architecture
Up to 16 UP5000D batteries can be configured in one battery group.
A system using only UP5000D modules can scale from:
- 4.8 kWh nominal energy with one battery
- 38.4 kWh nominal energy with eight batteries
- 76.8 kWh nominal energy with sixteen batteries
At 95% Depth of Discharge, a 16-module UP5000D group provides a calculated usable energy capacity of 72.96 kWh.
The final supported battery quantity may be limited by the inverter, communication architecture, current requirements and approved Pylontech system design.
Long-life LiFePO4 technology
The UP5000D uses lithium iron phosphate battery chemistry, widely selected for stationary energy storage because of its thermal stability, long cycle life and dependable performance.
The battery is rated for more than 8000 cycles at 25°C under the manufacturer’s specified operating conditions. It also has a stated design life of 15 years at 25°C.
Actual battery life depends on operating temperature, Depth of Discharge, charge and discharge rate, system configuration, storage conditions and maintenance practices.
Intelligent battery monitoring and communication
An integrated Battery Management System monitors and manages important battery operating conditions to support safe and reliable operation.
RS485 and CAN communication allow the UP5000D to exchange battery status and operating information with compatible inverters and energy-management systems.
Correct communication enables coordinated charging, discharging, monitoring and system protection. The inverter firmware, communication protocol and cable pin configuration must be confirmed before commissioning.

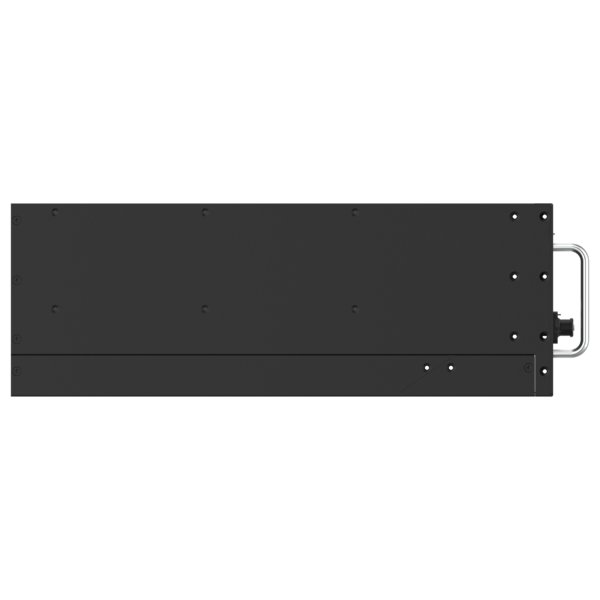

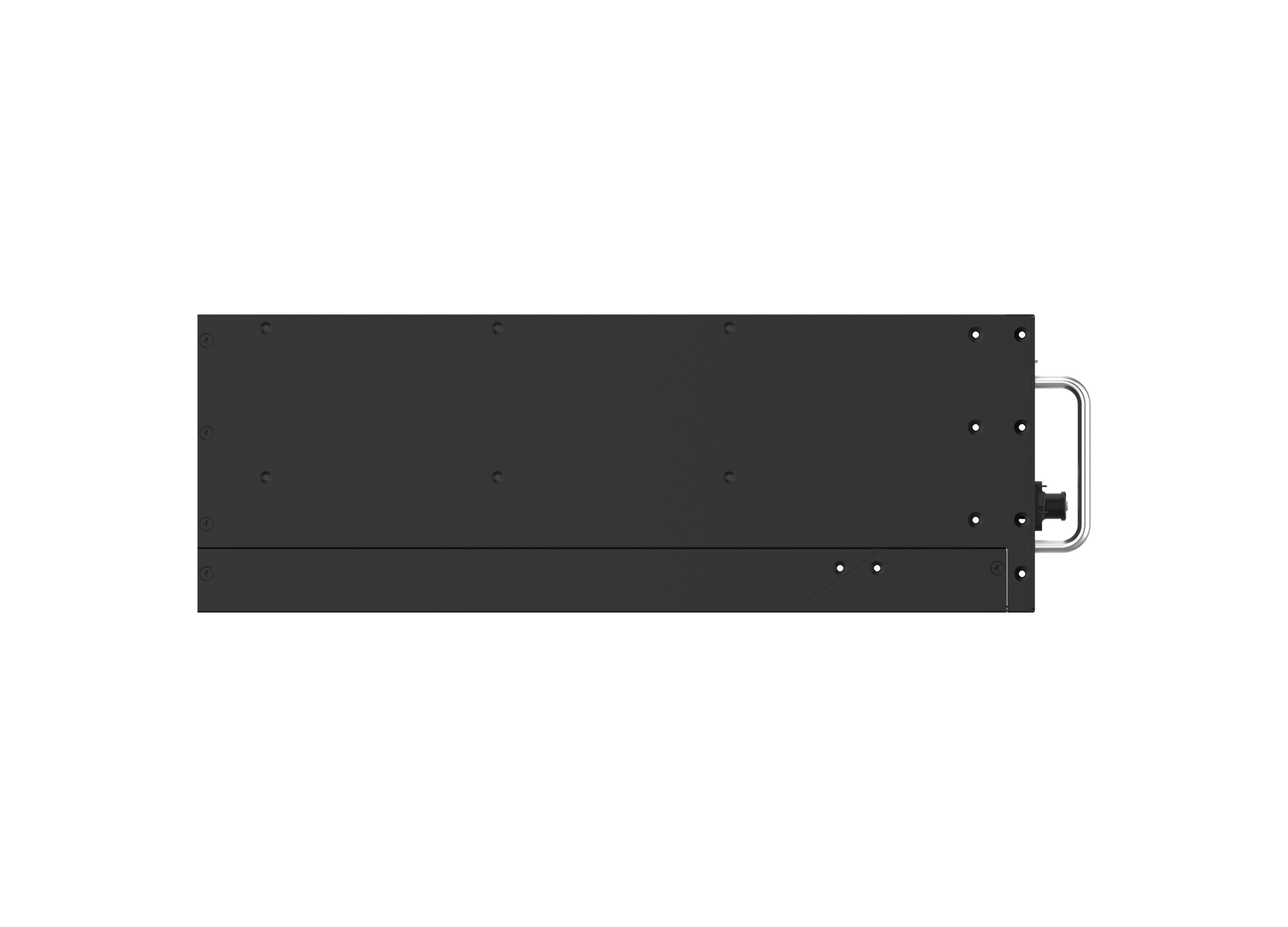

Compact rack-mountable design
The UP5000D uses a compact module format measuring 442 x 420 x 161 mm and weighing 39.7 kg.
Its rack-mountable design makes it suitable for organised residential battery installations, equipment rooms, server-style battery racks and multi-battery cabinets.
The modular construction also supports staged expansion, easier service access and more efficient use of installation space.
Designed for backup and off-grid applications
Pylontech positions the UP5000D for backup power, off-grid systems and microgrid projects.
Its low-voltage architecture, high usable capacity and modular configuration make it suitable for applications where dependable stored energy and future expansion are important considerations.
The final system must still be designed around the inverter output, expected loads, backup duration, available solar generation and charging capacity.
Protected indoor installation
The UP5000D has an IP20 enclosure rating and must be installed indoors or inside a suitable protective battery enclosure.
The installation location must protect the battery from rain, moisture, condensation, conductive dust, corrosive substances, direct heat sources and physical damage.
The battery must not be treated as a weatherproof outdoor product.
Technical specifications
| Parameter | UP5000D specification |
|---|---|
| Model | Pylontech UP5000D |
| Battery chemistry | Lithium iron phosphate (LiFePO4) |
| Nominal voltage | 48 V DC |
| Nominal energy | 4.8 kWh |
| Usable energy | 4.56 kWh |
| Depth of Discharge | 95% |
| Normal charge/discharge current | 100 A |
| Maximum charge/discharge current | 105-119 A for 15 minutes |
| Peak charge/discharge current | 120-200 A for 15 seconds |
| Short-circuit current and duration | Less than 2000 A for 1 ms |
| Communication | RS485 / CAN |
| Maximum quantity in one battery group | 16 batteries |
| Compatible Pylontech battery models | US2000 / US2000C / US3000 / US3000C / UP5000* |
| Mounting design | Rack-mountable battery module |
| Charge temperature | 0°C to 50°C |
| Discharge temperature | -10°C to 50°C |
| Storage temperature | -20°C to 45°C |
| Protective class | Class I |
| Enclosure rating | IP20 |
| Operating humidity | 5% to 95% RH, non-condensing |
| Maximum operating altitude | 4000 m |
| Module dimensions | 442 x 420 x 161 mm |
| Module weight | 39.7 kg |
| Design life | 15 years at 25°C |
| Cycle life | More than 8000 cycles at 25°C** |
| Certifications | IEC 62619 / IEC 63056 / UL 1973 / UL 9540A / IEC 61000-6-2 / IEC 61000-6-3 / UN38.3 |
*Mixed-model compatibility is subject to inverter support, battery firmware, communication settings, battery condition and the correct Pylontech connection sequence.
**Cycle life is defined under specific operating conditions. Contact Pylontech or an authorised technical representative for the applicable cycle-life test conditions.
The stated recommended and higher operating currents apply when battery-cell temperature is within the manufacturer’s specified range. Operation outside the recommended temperature range may result in current derating by the Battery Management System.
System configuration examples
| UP5000D modules | Nominal voltage | Nominal energy | Usable energy |
|---|---|---|---|
| 1 | 48 V | 4.80 kWh | 4.56 kWh |
| 2 | 48 V | 9.60 kWh | 9.12 kWh |
| 4 | 48 V | 19.20 kWh | 18.24 kWh |
| 8 | 48 V | 38.40 kWh | 36.48 kWh |
| 12 | 48 V | 57.60 kWh | 54.72 kWh |
| 16 | 48 V | 76.80 kWh | 72.96 kWh* |
*Configuration energy values are calculated from the stated 4.8 kWh nominal and 4.56 kWh usable energy per UP5000D module. The actual maximum supported quantity and available system capacity must be confirmed against the inverter, battery firmware, communication arrangement and approved Pylontech system design.

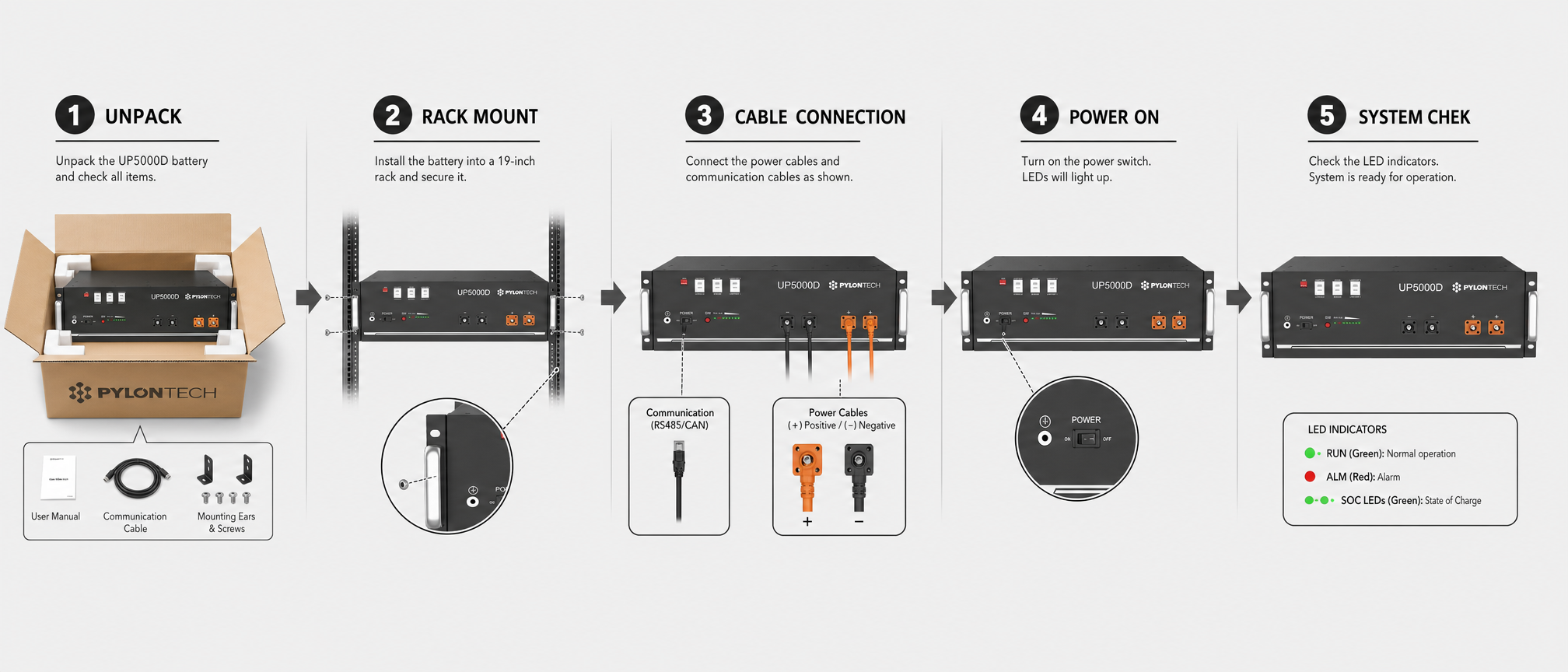

Mixed-model installation requirements
The ability to combine the UP5000D with selected previous-generation batteries is a major product advantage, but mixed-model installation must be planned and commissioned correctly.
Before combining different Pylontech battery models, the installer must confirm:
- Compatibility between all proposed battery models
- Compatibility with the selected inverter
- Required battery firmware versions
- Inverter firmware and battery protocol support
- CAN or RS485 communication settings
- Required master-battery model and position
- Correct battery connection sequence
- DIP-switch and addressing requirements
- Maximum permitted battery quantity
- Battery cable and overcurrent-protection sizing
- Condition and State of Health of the existing batteries
- Required commissioning and balancing procedure
Do not connect different battery models based only on their nominal voltage. An incorrect connection sequence, unsupported firmware combination or incompatible inverter configuration can prevent communication or cause incorrect system operation.
Installation and commissioning must be completed by a qualified solar or electrical installer following the latest Pylontech instructions.
Typical applications
- Expansion of compatible existing Pylontech battery systems
- Residential solar energy storage
- Commercial solar energy storage
- Load-shedding backup power
- Essential-load backup systems
- Solar self-consumption
- Time-of-use energy management
- Off-grid homes and properties
- Small-business backup systems
- Rack-mounted battery cabinets
- Expandable multi-battery systems
- Hybrid solar-grid-generator systems
- Microgrid energy-storage projects
Short product summary
The Pylontech UP5000D is a new-generation 48 V, 4.8 kWh LiFePO4 battery designed for residential and commercial solar storage, load-shedding backup, off-grid systems and microgrid applications. It provides 4.56 kWh of usable energy at 95% Depth of Discharge, supports 100 A normal charge and discharge current, and is rated for more than 8000 cycles at 25°C. Compatibility with Pylontech US2000, US2000C, US3000, US3000C and UP5000 batteries makes the UP5000D a practical option for expanding compatible existing systems without automatically replacing installed batteries. Up to 16 UP5000D modules can be configured in one battery group, providing up to 76.8 kWh of nominal energy.
Datasheet download
| Weight | 39.7 kg |
|---|---|
| Dimensions | 44.2 × 42 × 16.1 cm |
