SRNE 3.5kW All-in-One Inverter & 5.12kWh Battery Kit

SRNE 3.5kW All-in-One Inverter & 5.12kWh Battery Kit

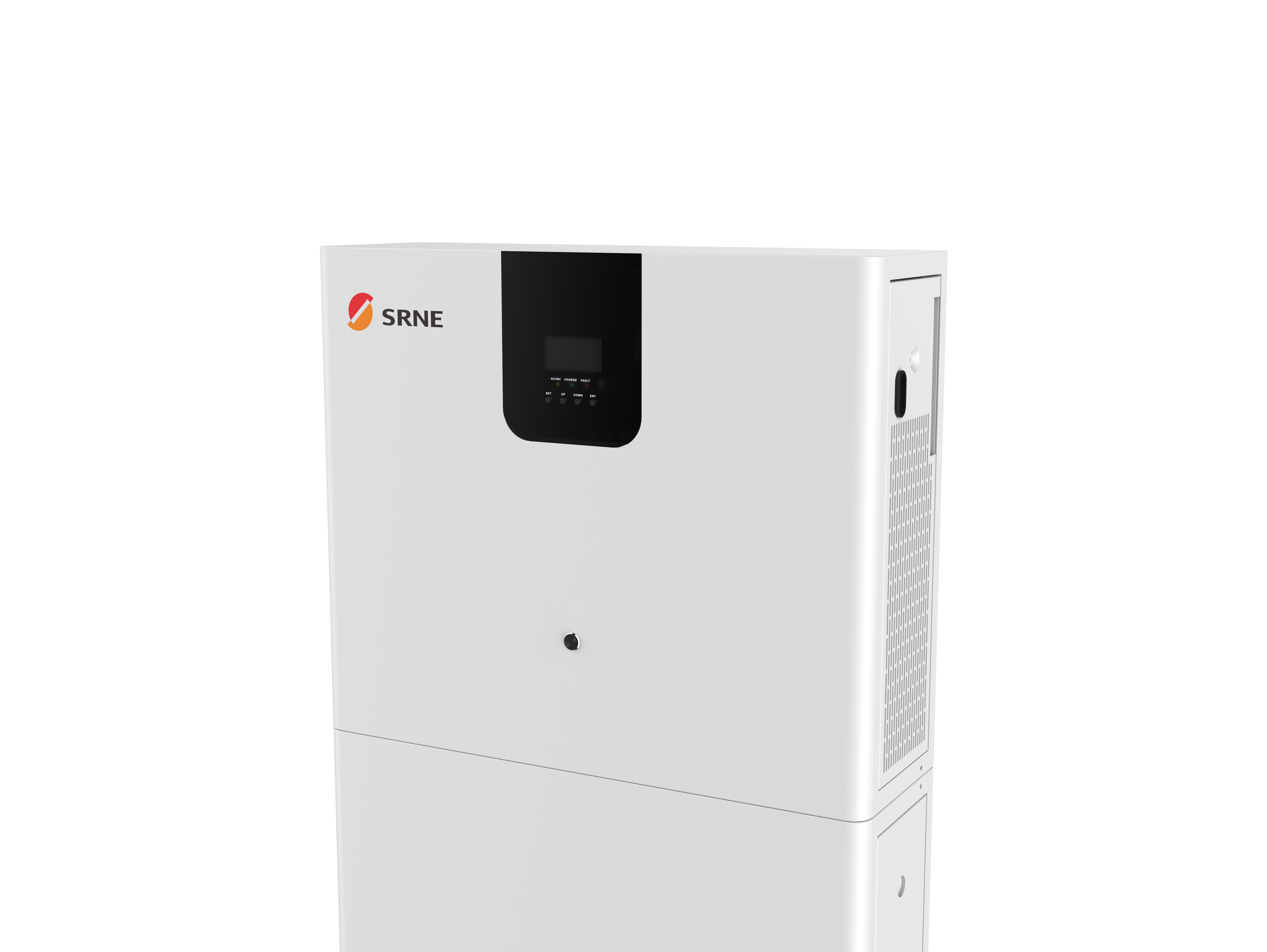

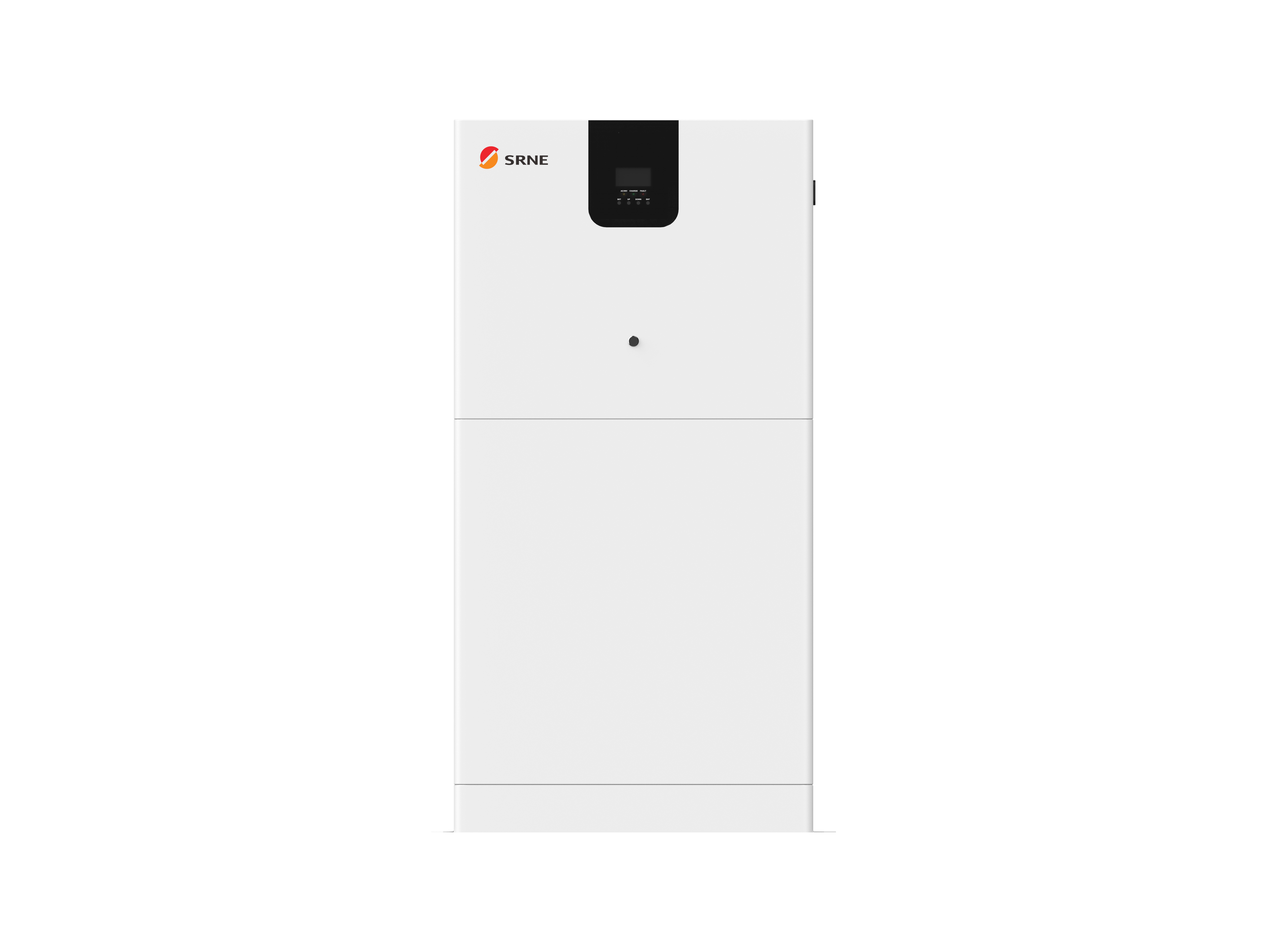

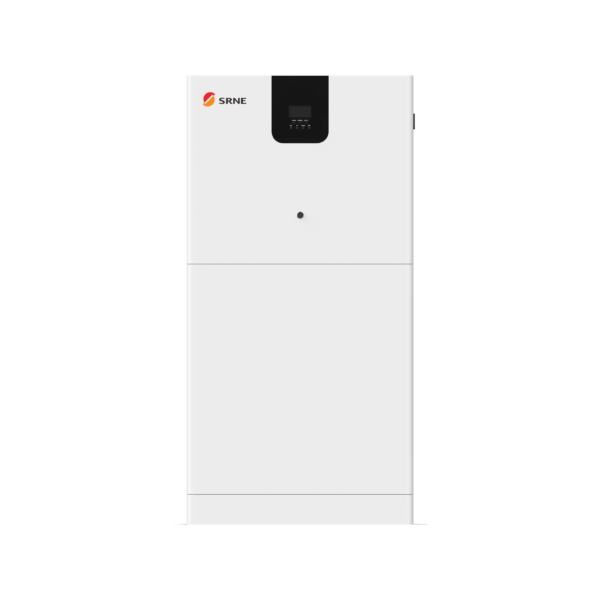

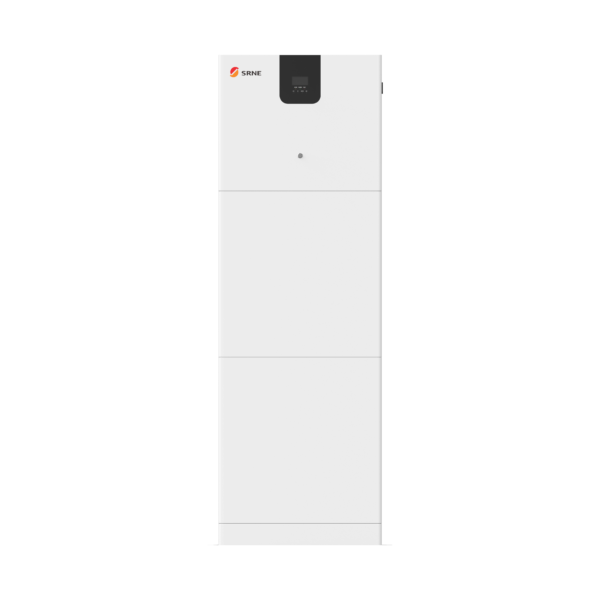

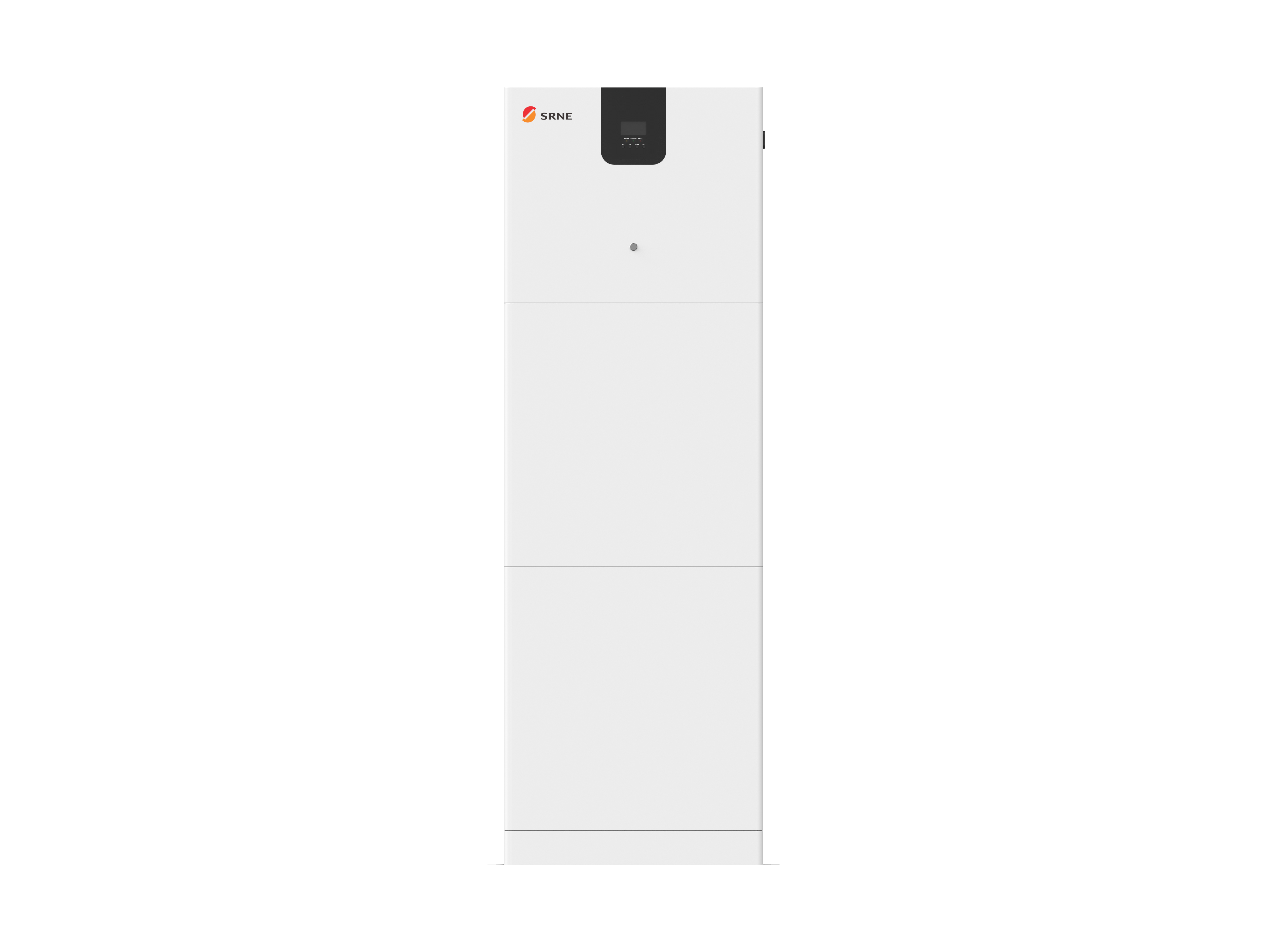

The SRNE 3.5kW all-in-one inverter and 5.12kWh battery kit combines the principal conversion and storage components in a coordinated format. It is a starting point for a residential backup or solar-storage installation where space and a clear equipment layout matter. The 3.5kW rating describes inverter output, while the 5.12kWh figure describes battery energy; each answers a different question when choosing the system.

The EOV24 configuration in this package

The 3.5kW package combines the EOV24 inverter family with a 25.6V, 200Ah LiFePO4 battery configuration. The nominal energy is 5.12kWh because 25.6V multiplied by 200Ah equals 5,120Wh. The voltage and capacity are specific to this configuration. They should not be substituted with the 51.2V, 100Ah figures of the separate 5kW EOV package, even though the stored energy is the same.

The 230V reference matters

The product documentation contains more than one regional inverter variant. The reference for this package is the 230V, 50Hz version, rather than the 120V variant also shown in the family literature. Keeping the regional version on the specification avoids applying the wrong AC limits. The supplied unit label and installation documentation should be retained so that future service work uses the correct reference.

Solar input is different from the smaller HF models

The EOV24 reference uses an MPPT solar input with a documented 120–450V tracking range and 500V maximum PV input limit. This is a different array-design context from the low-voltage solar input of the HF2430S60-100. The installer must check both cold-condition open-circuit voltage and operating range for the chosen panels. The appearance of an SRNE label on both products does not make their panel arrangements interchangeable.

Why stored energy and simultaneous load are different

The 3.5kW inverter rating limits the instantaneous AC supply capability, while the 5.12kWh battery rating describes stored energy. A lower-power load can use the storage over a longer period than a high-power load, subject to reserve and losses. More battery capacity does not automatically increase inverter output. This distinction is useful when deciding whether the household needs longer backup duration or more simultaneous appliance capacity.

Make the load list specific to the home

Begin with the circuits that should remain available when mains power is absent. Identify the normal running power of each device and whether it has a startup demand. Schedule discretionary heating loads where possible instead of assuming they must operate with the essential circuits. This turns the 3.5kW specification into an actionable selection decision and gives the installer a realistic basis for configuring the system.

Understand what is included and what still needs design

The package provides the named inverter and battery arrangement. The solar array, connection equipment and site installation should be explicitly listed where they are supplied. An integrated enclosure does not remove the need to design the rest of the installation. Keep the equipment list separate from the product photograph so that an example installation is not mistaken for the contents of the order.

Match the kit to your household

A 3.5kW system is best assessed around a deliberate selection of essential circuits. Start with lighting, internet equipment, a home office and any refrigeration that the installer has checked for running and startup demand. The goal is a useful backup circuit that remains within the equipment limits when several devices operate together. High-demand heating appliances can use a large share of the available output, so include their actual ratings in the survey rather than assuming every household circuit will be supported.

Understand the battery configuration

The referenced EOV24 configuration uses a 25.6V battery rated at 200Ah. Multiplying voltage by amp-hours gives the nominal energy basis of 5.12kWh. This lower-voltage battery arrangement must not be treated as interchangeable with the 51.2V battery in the separate 5kW kit. Match replacement or expansion components by approved model and communication requirements. A shared brand name or similar cabinet shape is not enough to establish electrical compatibility.

Estimate useful runtime

A steady 500W load consumes 0.5kWh each hour. Dividing 5.12kWh by 0.5kW gives 10.24 hours as a nominal, energy-only calculation before reserve, conversion losses and other operating factors. The actual AC runtime will be lower under those assumptions and changes when loads cycle or additional appliances are switched on. Ask for a calculation using the intended reserve setting and a measured or carefully estimated average load. Keep a separate check for peak demand, because a satisfactory energy calculation does not prove a motor can start.

Plan solar charging for the exact generation

The system reference includes an MPPT solar charging function, but the array still needs a string design. The installer should assess panel open-circuit voltage at the design temperature, operating voltage and current against the supplied unit’s limits. The linked reference is the older EOV24 arrangement; specifications for newer SRNE EOT products should not be substituted simply because the output rating is similar. Roof shading and orientation also affect the energy available for charging.

Decide how charging should support backup

Agree the operating priorities at commissioning: which sources may charge the battery, how much reserve should remain and how discretionary loads will be managed. A higher reserve can preserve more energy for an outage while leaving less storage available for routine daily use. The best setting depends on how you use electricity and the charging opportunities at the property. Grid or generator charging, where configured, also has to respect the incoming supply and battery limits. Keep a written record of the selected settings for later support.

Make room for a complete installation

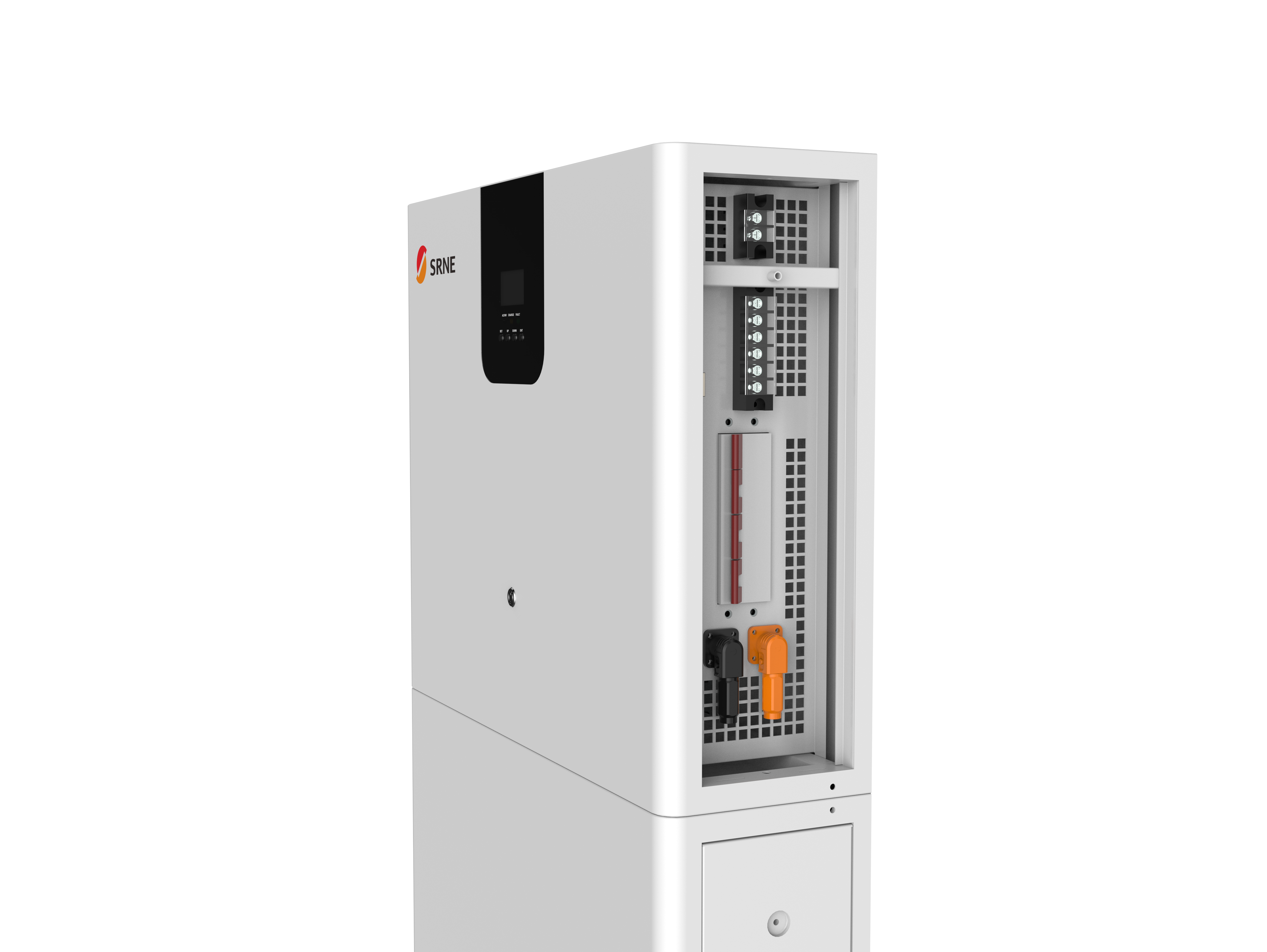

The IP20 reference calls for an appropriate indoor location. Reserve space for ventilation, inspection and cable access as well as the cabinet footprint. A compact all-in-one format can simplify the equipment arrangement, but it does not remove the need for site wiring, protection and commissioning. Before delivery, check the access route and mounting requirements with the installer. Identify any supplied base, brackets, cables and monitoring accessories on the quotation so that a tidy product image does not become an assumption about package contents.

Use monitoring to improve daily decisions

At handover, learn where to check battery charge, operating mode and any reported faults. Where app monitoring is part of the supplied configuration, confirm the required communications accessory and network access. Comparing daytime charging with evening consumption helps reveal whether loads are being scheduled effectively. Keep the unit’s full model, serial number and supplier documentation accessible. For future storage changes, ask for an approved EOV24 configuration before ordering another module.

Frequently asked questions

Does all-in-one mean no installation is needed? No; the site still needs a designed and commissioned connection. Are panels part of this offer? Confirm the component list in the quotation. Does 3.5kW mean 3.5 hours of backup? No; output power and stored energy are different quantities. Can I add another battery later? Ask for the approved configuration for the exact product generation. Is this an outdoor cabinet? Use the indoor IP20 reference when planning this installation rather than assuming weatherproof construction.
