Dyness DL5.0C 5.12kWh Battery

Dyness DL5.0C 5.12kWh Battery

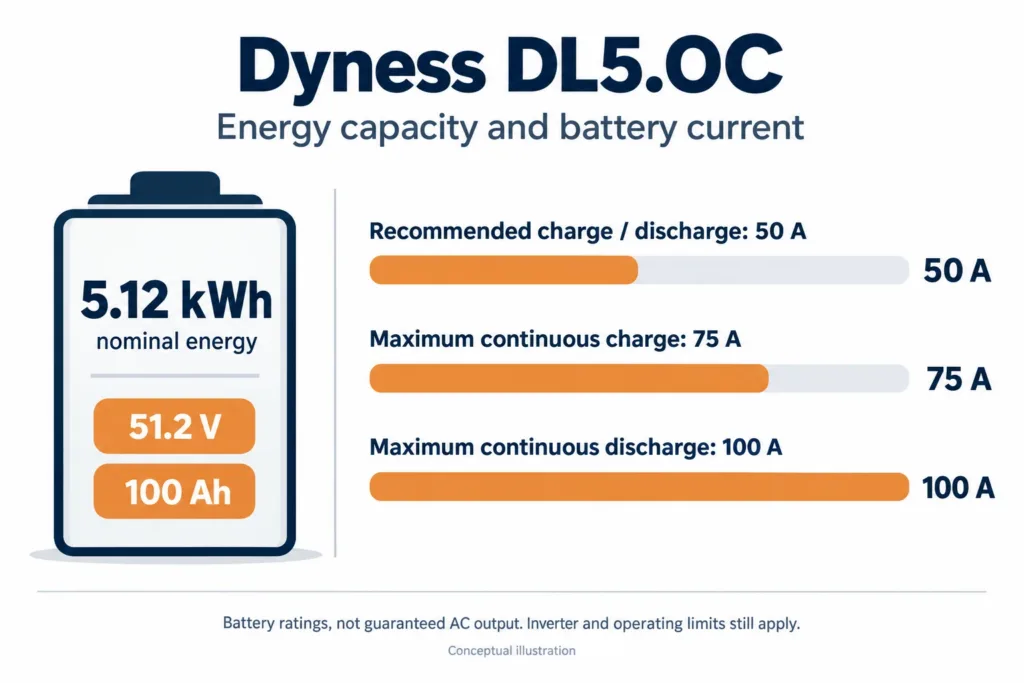

The Dyness DL5.0C combines 5.12kWh nominal energy with a 51.2V, 100Ah battery specification. It is a low-voltage LiFePO4 module intended for supported storage systems. The corresponding product view and current-rating illustration below help identify the DL5.0C and distinguish its energy capacity from its current limits.

Different limits for charging and discharging

The DL5.0C has a 75A maximum continuous charging rating and a 100A maximum continuous discharging rating. The recommended charge/discharge current is 50A. These are three distinct values, so copying the largest figure into every inverter setting would be inappropriate. Commissioning should follow the supported battery profile and the limits of the complete installation.

Compare low-voltage batteries using energy

The 100Ah capacity only becomes an energy figure when considered with the voltage. For this module, 51.2V multiplied by 100Ah gives 5.12kWh nominally. That makes the energy rating directly comparable with other storage options. It does not establish the AC output of the inverter or the time that a particular appliance will operate.

Build an evening load budget

Start with the devices that normally run after solar generation falls away. Add their energy use across the evening rather than simply adding appliance nameplate ratings. The result helps establish whether one module provides the required reserve or whether a supported larger system is needed. Allow for conversion losses and the battery reserve selected for interruptions.

Match the actual inverter and battery revision

Compatibility is a model-level question. Check the inverter’s supported battery configuration, the required communication and the installed battery revision. A general brand compatibility statement is less useful than confirming the exact pair. If the system already includes batteries, use their labels when assessing an addition; the visual similarity of two Dyness units does not establish interchangeability.

Place the module where it can be serviced

The IP20 enclosure calls for an appropriate indoor installation. Leave the access and clearances required by the manufacturer and select mounting components suited to the actual enclosure. The product photograph identifies the DL5.0C appearance, while the datasheet remains the reference for installation planning. Do not use a different model’s rack photograph as a mounting specification.

Keep the purchase scope clear

The listing is for the battery product. A complete installation also depends on the inverter, connection equipment and commissioning. Ask for those items to be identified in the quotation where required. For solar self-consumption, ensure that enough surplus generation is available to recharge the intended storage; a larger battery cannot compensate for an energy shortfall throughout the charging period.
