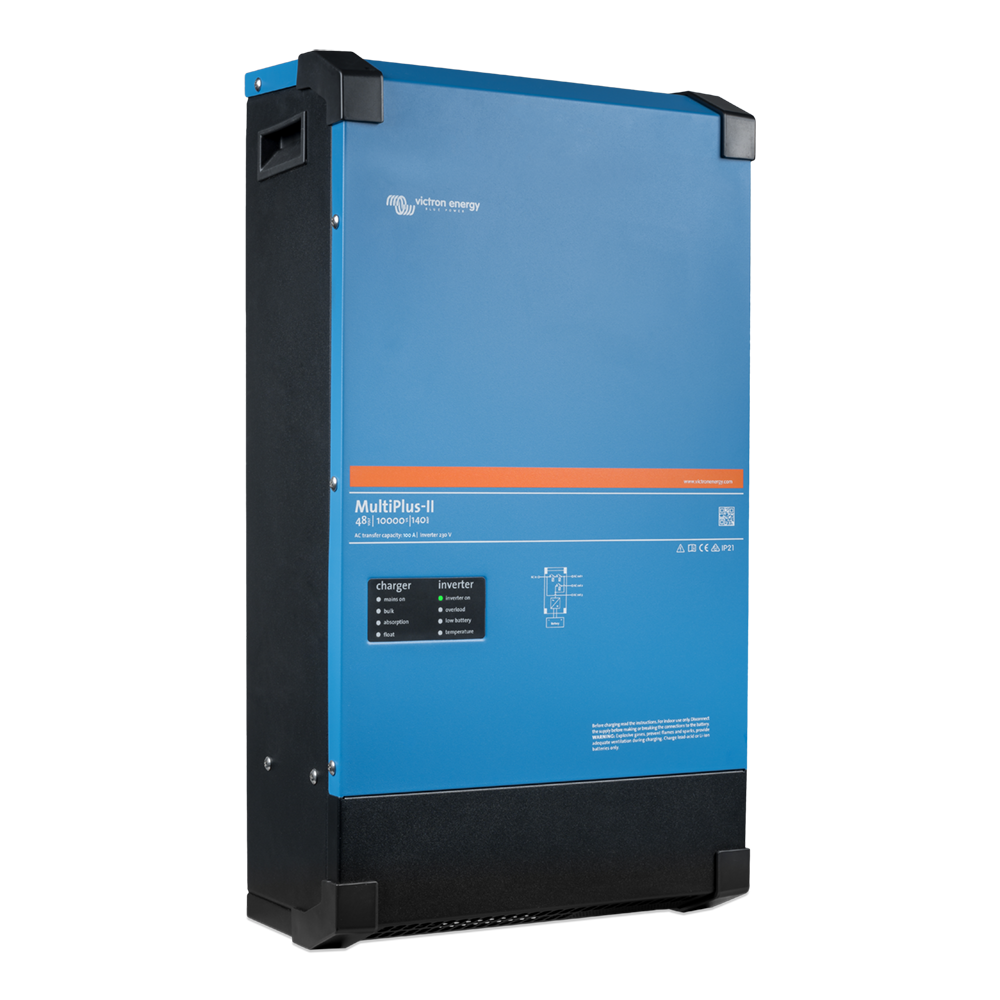

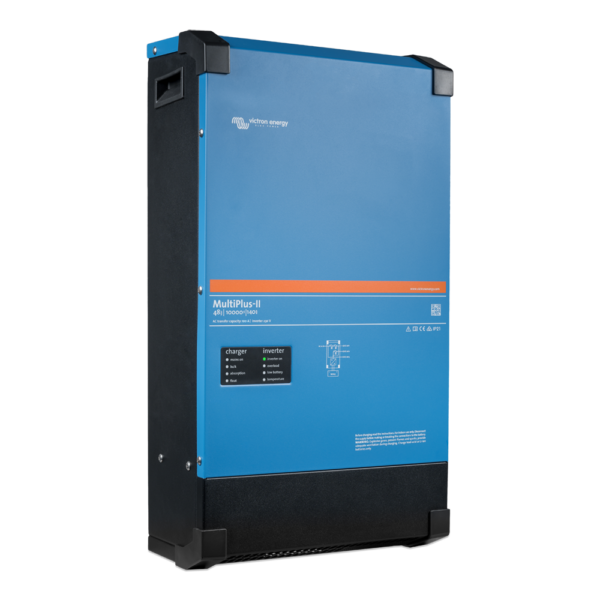

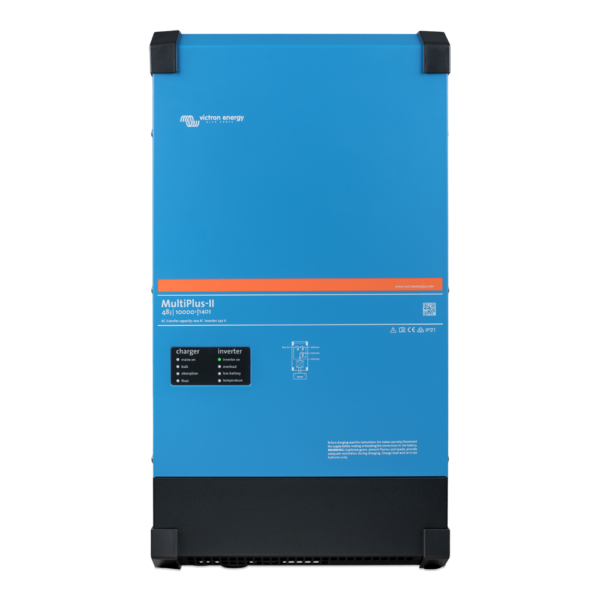

Victron MultiPlus-II 10kVA 48/10000/140-100 Inverter/Charger

Victron MultiPlus-II 10kVA 48/10000/140-100 Inverter/Charger

The Victron MultiPlus-II 48/10000/140-100 combines a 48V battery inverter and an AC battery charger in one unit. Its 10kVA apparent-power rating corresponds to 8kW of continuous real output at 25°C. It is a suitable building block for a designed backup or energy-storage system where battery capacity, AC input limits and solar charging are selected separately.

Read the model number correctly

The 48 identifies the battery-voltage class, 10000 the apparent-power class, 140 the charger rating and 100 the transfer-current rating. These figures are not interchangeable. In particular, the 100A transfer specification does not mean that the inverter can generate that current continuously from the battery. Use the continuous real-power rating when assessing the expected AC load.

Allow for warm equipment rooms

Continuous output is temperature-dependent: the published rating falls from 8kW at 25°C to 7kW at 40°C. A system planned around the higher figure needs the appropriate installation conditions. For a warm garage or equipment room, consider the actual operating environment before assigning loads. Ventilation and access are part of the layout, not an afterthought once the unit is mounted.

Solar charging is a separate component

The MultiPlus-II is an inverter/charger rather than a unit with a built-in solar MPPT input. Solar integration requires suitable external equipment. This distinction matters when comparing quotations: a battery inverter and an all-in-one hybrid inverter may include different functions. Ask for the solar charging equipment, monitoring components and battery system to be listed explicitly in the system design.

Size the battery for power as well as energy

A 48V battery bank must support the inverter demand within the battery manufacturer’s permitted current. Stored kWh alone do not establish whether the bank can deliver that demand. When reviewing a battery selection, consider both simultaneous loads and the required operating duration. The AC charger must also be configured to respect the battery’s charging limit rather than automatically using its full 140A capability.

Separate essential and discretionary demand

For backup operation, decide which circuits justify the available inverter power. Refrigeration, networking and selected lighting may have different priorities from electric heating or cooking. A load schedule should include startup demand as well as running consumption. That gives the installer a practical basis for selecting the inverter, battery quantity and the circuits assigned to backup.

Specify a complete Victron installation

The product is the named inverter/charger, not a complete solar package. Confirm the battery model, solar charging arrangement and desired monitoring functions with the quotation. Retain the supplied model documentation for commissioning and future expansion. The IP22 enclosure requires an appropriate protected location, and the product should be integrated according to the manufacturer’s installation instructions.
