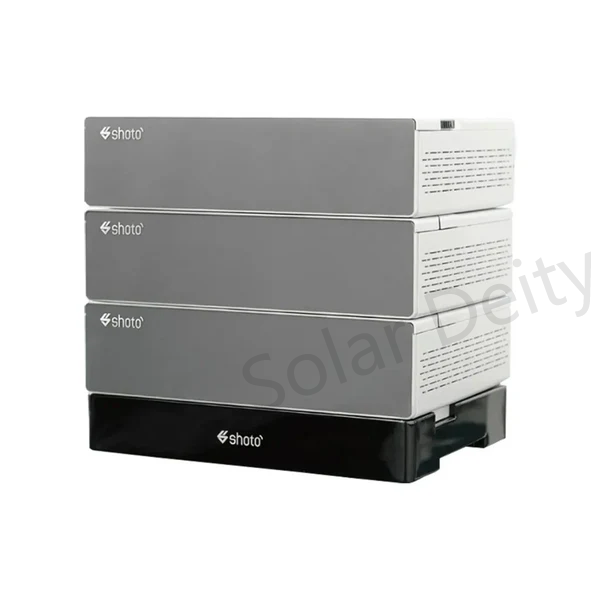

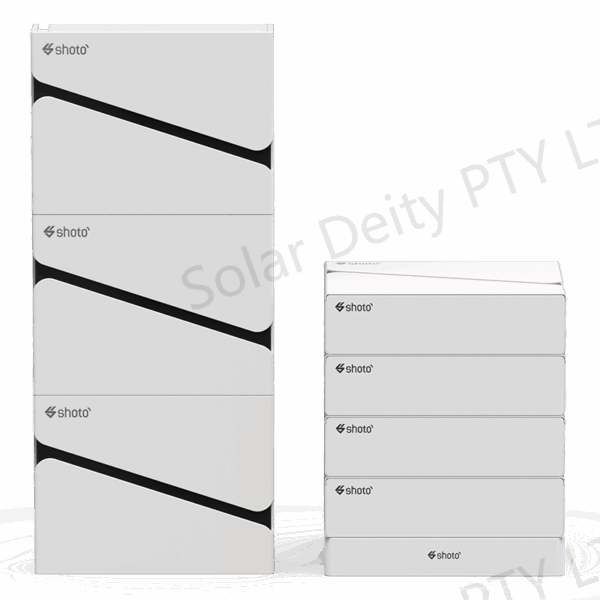

Shoto HP10 Box5 Pro 5.12kWh LiFePO4 Battery

Delivering Reliable Power with High Charge/Discharge Rates, 16-Unit Parallel Scalability, and Certified Safety for Optimal Solar + Storage Installations

The Shoto HP10 Box5 Pro is a next-generation 51.2V lithium iron phosphate (LiFePO₄) battery designed to meet the demanding requirements of both residential and commercial & industrial (C&I) energy storage applications. Offering a nominal capacity of 5.12kWh and a usable capacity of 4.1kWh at 80% DOD, this battery ensures you achieve the maximum return on investment over its extended 10+ year lifespan, backed by an impressive 5000+ cycles performance profile.

Built for flexibility and scalability, the HP10 Box5 Pro supports up to 16 units in parallel, making it an excellent choice for modular systems where energy demands may grow over time. It features a robust charge and discharge current capability of up to 100A (1C), with a recommended operational level of 50A (0.5C) for enhanced longevity and stability.

Engineered for diverse climates and challenging installations, this battery maintains reliable performance across a wide operating range — charging from -5°C to +45°C, discharging from -20°C to +50°C, and storing safely between -20°C and +35°C, with altitude tolerance up to 4000m and humidity support from 5% to 95%.

Integration is effortless, thanks to built-in CAN and RS485 communication ports, ensuring smooth compatibility with popular inverter brands including Victron, Deye, LuxPower, and more, enabling intelligent energy management and seamless system control.

Certified to meet international safety and quality standards such as TUV (IEC 62619), CE-EMC, and UN38.3, the HP10 Box5 Pro provides peace of mind for installers and end-users alike.

Key Specifications:

• ✅ Nominal Capacity: 5.12kWh

• ✅ Usable Capacity:  90% DOD

• ✅ Voltage: 51.2V nominal

• ✅ Charge Voltage: 54.0V – 56.4V

• ✅ Discharge Voltage: 45.0V – 53.0V

• ✅ Max Parallel Units: 16

• ✅ Charge/Discharge Current: Recommend 50A (0.5C) / Max 100A (1C)

• ✅ Communication: CAN / RS485

• ✅ Operating Temperature: Charge -5°C to +45°C, Discharge -20°C to +50°C

• ✅ Storage: -20°C to +35°C, Altitude ≤4000m, Humidity 5%-95%

• ✅ Certifications: TUV (IEC 62619), CE-EMC, UN38.3

• ✅ Warranty: 5 Years

Important Notice:
This HP10 Box5 Pro model features advanced internal architecture and cannot be paralleled with previous Shoto battery models, ensuring superior system safety and performance.
